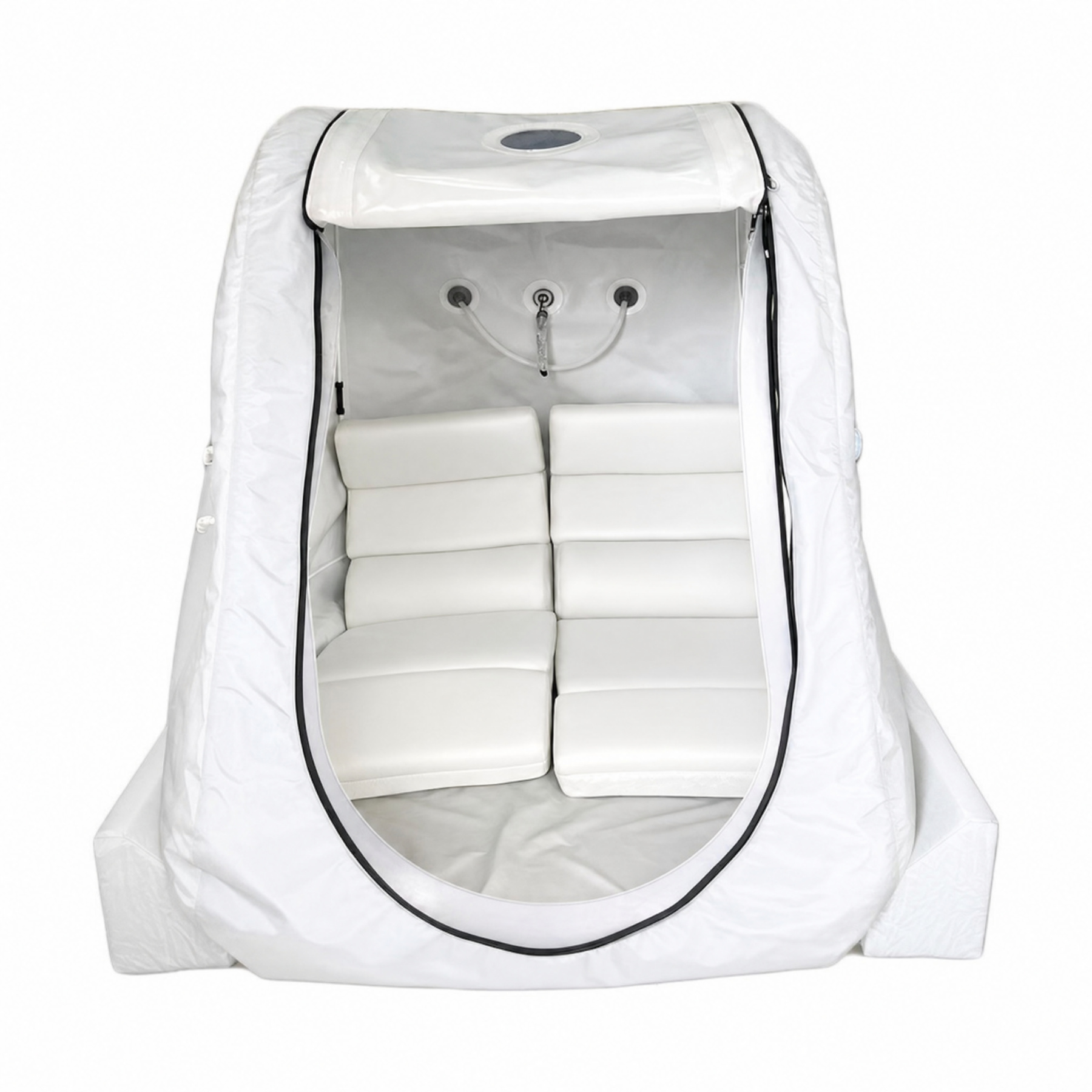

Meridian interior — cushioned seating, ports, observation window
The three Meridian units — air compressor, air cooler, oxygen concentrator
fig. i — meridian, three-quarter soft-shell portable · 1.3 / 1.4 ATA · 1 person, sitting
· the object

A roomier sitting-style portable — proportioned for a held, quiet hour.

Meridian is a soft-shell portable chamber operating at 1.3 – 1.4 ATA. The envelope is IPU — a polyurethane composite fiber clip-mesh cloth — supported by an internal metal frame so the chamber holds its shape between sessions. Entry is through a three-zipper seal, secured against air loss. An observation window keeps the room visible from inside.

The controller pressurises room air rather than pure oxygen. A built-in silencing device keeps operating noise low. A memory-foam mattress with an antibacterial cotton-and-bamboo cover finishes the interior. Designed for single-operator use — no assistant required.

· the machines

Three small units, that hold a quiet hour.

Air Compressor
Air Compressor
oil-free · 70 L / min
Air Cooler
Air Cooler
silenced · 110V / 220V
Oxygen Concentrator
Oxygen Concentrator
PSA · 10 L / min
· key features

8 considered details, nothing extra.

01 Three-zipper seal — easier entrance, reliable pressure hold
02 Single-operator use — no assistant required
03 Observation window for comfort and monitoring
04 Memory-foam mattress with antibacterial cotton / bamboo cover
05 Internal metal frame — chamber holds shape when deflated
06 Built-in silencing device for quieter operation
07 Integrated timing, alarm, and negative-ion features
08 Emergency valve for rapid depressurization
specifications

Full technical sheet

Family
Soft-shell portable
Capacity
1 person · sitting
Pressure
1.3 / 1.4 ATA · up to 5.9 psi
Chamber size
55 × 51 × 69 in (W × D × H)
Material
IPU — polyurethane composite fiber clip-mesh cloth
Net weight
≈ 44 lb (chamber)
Machine size
30 × 17 × 28 in (L × W × H)
Input flow
70 L / minute
Oxygen flow
10 L / minute (via external concentrator)
Input power
1280 W
Voltage
110V / 220V
Certification
ISO 9001 · ISO 13485 · CE
what's included

In the crate.

  1. 01 Chamber & machine / controller
  2. 02 Power cord & connection air tube
  3. 03 Memory-foam mattress (antibacterial cover)
  4. 04 Internal metal stand & anti-rotation equipment
  5. 05 Observation window
  6. 06 Built-in silencing device
  7. 07 Timing, alarm, negative-ion devices
  8. 08 Safety device & emergency valve
  9. 09 Pressure-measuring device · constant-pressure device
  10. 10 Trachea & valve assembly
delivery & assurance

Crated, to your door.

Meridian arrives crated. Total time from order to door is approximately 4 weeks. Inspect the crate on arrival and photograph any visible damage; the studio coordinates any freight claim on your behalf.

Total ship time
~ 4 weeks (production + transit)
Arrival
crated, to the door
Set-up
single operator, no assistant
Voltage option
110V / 220V
warranty & service

Three years · lifetime service.

Within the three-year window: easy issues are remedied with free replacement components and instructions; major issues with a free replacement unit shipped directly. Beyond three years, lifetime service support continues at standard parts and service rates.

Warranty
3 years · quality, material, design
Service
lifetime, beyond warranty
Returns
no returns · repair or replace, free of charge
On-site
replacement components shipped to your door
· before you begin

A short list of safety notes.

  1. 01 A soft-shell chamber pressurises room air through an external concentrator. It is not flammable in the way a pure-oxygen chamber is — but should still never be exposed to a naked flame or lit cigarette.
  2. 02 Ear discomfort during pressurisation is common; swallowing, yawning, or chewing helps. First-time users may feel briefly tired or light-headed.
  3. 03 Children under 16 should be accompanied by an adult inside the chamber.
  4. 04 Consult a qualified healthcare provider before beginning any new practice — Echelon Hyperbarics does not provide medical advice.
