the collection / quietus
Quietus L1 vertical sitting hyperbaric chamber

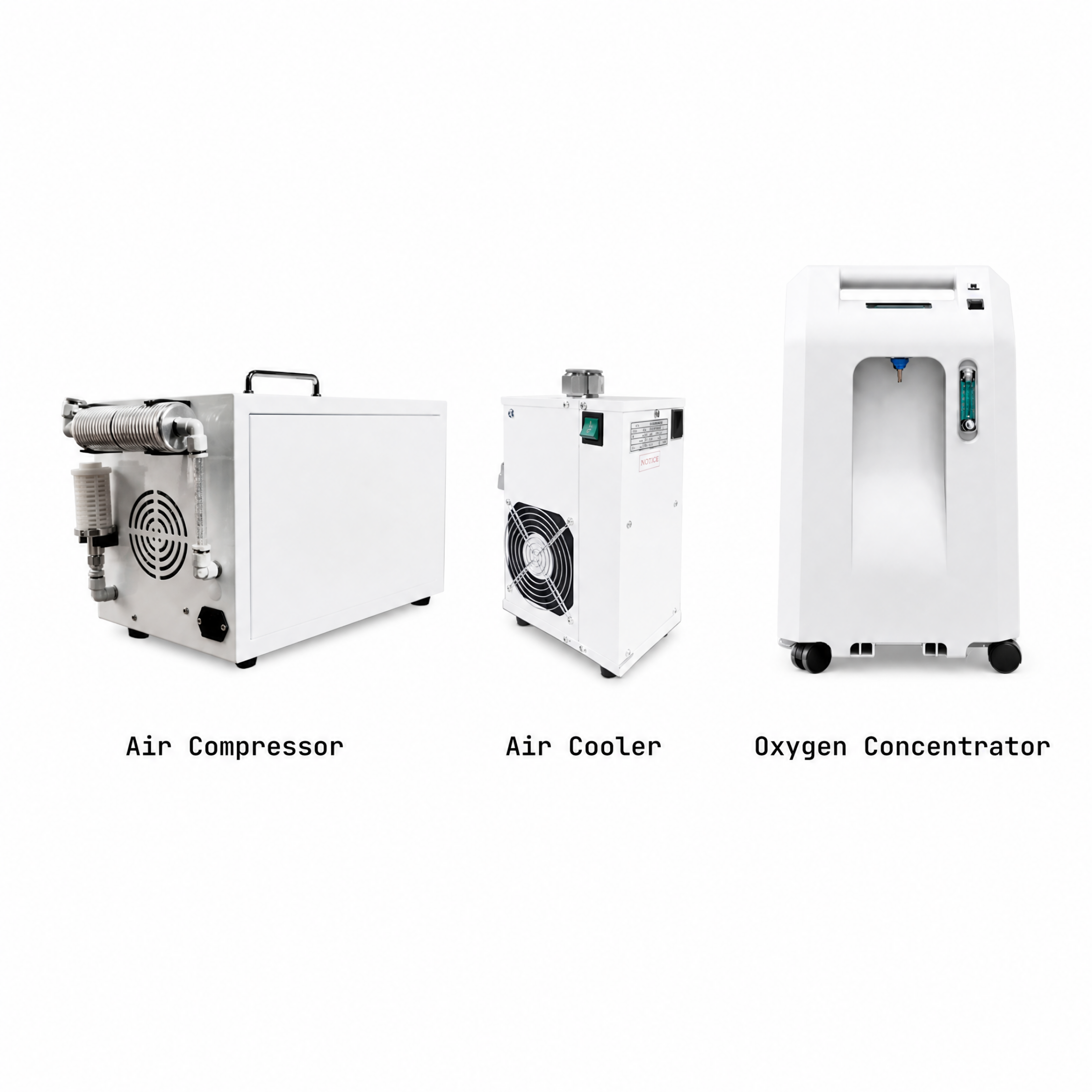

The three Quietus units — air compressor, air cooler, oxygen concentrator
fig. i — quietus, three-quarter soft-shell portable · 1.3 – 1.5 ATA · 1 person, sitting
· the object

The smallest footprint — a chamber that fits a small room.

Quietus is a vertical sitting-style soft chamber, designed for rooms where floor space is limited. An L-shaped zipper eases entry and exit. The IPU envelope is supported by an internal metal stand so the chamber holds its shape between sessions.

The controller pressurises room air through an external concentrator, with optional oxygen headset. An internal pressure gauge is visible from inside; timing, alarm, and negative-ion features are integrated. Designed for single-operator use — no assistant required.

· the machines

Three small units, that hold a quiet hour.

Air Compressor
Air Compressor
oil-free · 70 L / min
Air Cooler
Air Cooler
silenced · 110V / 220V
Oxygen Concentrator
Oxygen Concentrator
PSA · 10 L / min
· key features

8 considered details, nothing extra.

01 Vertical sitting design — small footprint, great for a room
02 "L"-shaped zipper — easier entrance and exit
03 Single-operator use — no assistant required
04 Internal pressure gauge visible from inside
05 Built-in timing, alarm, and negative-ion features
06 Emergency valve for rapid depressurisation
07 Internal metal stand — chamber holds shape
08 Operates on room air via external concentrator
specifications

Full technical sheet

Family
Soft-shell portable · vertical sitting
Capacity
1 person · sitting
Pressure
1.3 – 1.5 ATA
Chamber size
55 × 39 × 63 in (W × D × H)
Material
IPU — polyurethane composite fiber clip-mesh cloth
Net weight
≈ 29 lb (chamber)
Machine size
30 × 17 × 28 in (L × W × H)
Input flow
70 L / minute
Oxygen flow
10 L / minute (via external concentrator)
Input power
1280 W
Voltage
110V / 220V
Certification
ISO 9001 · ISO 13485 · CE
what's included

In the crate.

  1. 01 Chamber & machine / controller
  2. 02 Power cord & connection air tube
  3. 03 Internal metal stand & anti-rotation equipment
  4. 04 Timing, alarm, negative-ion devices
  5. 05 Safety device & emergency valve
  6. 06 Pressure-measuring device · constant-pressure device
  7. 07 Trachea & valve assembly
  8. 08 Optional: oxygen headset / facial mask
delivery & assurance

Crated, to your door.

Quietus arrives crated. Total time from order to door is approximately 4 weeks. Inspect the crate on arrival and photograph any visible damage; the studio coordinates any freight claim on your behalf.

Total ship time
~ 4 weeks (production + transit)
Arrival
crated, to the door
Set-up
single operator, no assistant
Voltage option
110V / 220V
warranty & service

Three years · lifetime service.

Within the three-year window: easy issues are remedied with free replacement components and instructions; major issues with a free replacement unit shipped directly. Beyond three years, lifetime service support continues at standard parts and service rates.

Warranty
3 years · quality, material, design
Service
lifetime, beyond warranty
Returns
no returns · repair or replace, free of charge
Components
replacement parts shipped to your door
· before you begin

A short list of safety notes.

  1. 01 A soft-shell chamber pressurises room air through an external concentrator. It is not flammable in the way a pure-oxygen chamber is — but should still never be exposed to a naked flame or lit cigarette.
  2. 02 Ear discomfort during pressurisation is common; swallowing, yawning, or chewing helps. First-time users may feel briefly tired or light-headed.
  3. 03 Children under 16 should be accompanied by an adult inside the chamber.
  4. 04 Consult a qualified healthcare provider before beginning any new practice — Echelon Hyperbarics does not provide medical advice.
